UC-6.3 — Chemical Hierarchy¶

Module: 6 – Hierarchical and Flow-based Functional Analysis
Visualization type: Treemap (three-level hierarchical composition)
Primary inputs: BioRemPP results table with compoundclass, compoundname, sample, and genesymbol
Primary outputs: Hierarchical partitioning of genetic diversity across classes → compounds → samples

Scientific Question and Rationale¶

Question: Which chemical classes and specific compounds are co-annotated with the most diverse gene sets, and which samples contribute the most to this annotation diversity?

This use case provides a top-down, hierarchical view of gene co-annotation distribution across chemical space. It organizes the dataset into three levels—chemical classes, individual compounds, and biological samples—and quantifies for each branch how many unique genes are co-annotated. The resulting treemap can expose which parts of chemical space are most densely co-annotated with genes, which compounds are co-annotated with particularly diverse gene sets, and which samples contribute the most to this annotation diversity.

Data and Inputs¶

Primary data source: BioRemPP_Results.xlsx or BioRemPP_Results.csv
Key columns:
compoundclass – high-level chemical class or category
compoundname – specific compound or pollutant name
sample – identifier for each biological sample
genesymbol – gene symbol or identifier associated with that sample–compound pair
Accepted format: semicolon-delimited text table (.txt or .csv)
Hierarchical structure:
Compound Class (compoundclass)
Compound Name (compoundname)
Sample (sample)

Analytical Workflow¶

Data Loading
The primary results table (BioRemPP_Results.xlsx or BioRemPP_Results.csv) is loaded from its semicolon-delimited format.
Hierarchy Definition
A three-level hierarchy is defined:
Level 1: compoundclass
Level 2: compoundname (nested within each class)
Level 3: sample (nested within each compound)
Aggregation of Genetic Diversity
The data is grouped by each unique (compoundclass, compoundname, sample) path:
for each group, the number of distinct gene symbols (genesymbol) is computed (e.g., via nunique()),
this count represents the genetic diversity contributed by that sample to that specific compound within that class.
Value Propagation for Treemap
The unique gene counts at the lowest level (per sample) are used as the basic values:
higher-level values for compoundname and compoundclass nodes are obtained by summing the values of all nested nodes,
this yields gene-diversity totals at each level.
Rendering
The aggregated data is rendered as an interactive treemap:
each rectangle represents a node in the hierarchy (class, compound, or sample),
the area of the rectangle is proportional to its total unique gene count,
color is also mapped to the unique gene count to reinforce the visual encoding.

How to Read the Plot¶

Nested Rectangles (Hierarchy)
The treemap uses nested rectangles to represent the hierarchy:
Outer rectangles represent compound classes (compoundclass),
within each class, inner rectangles represent compounds (compoundname),
within each compound, the smallest rectangles represent samples (sample).
Area (Values) The area of each rectangle is proportional to the total unique gene co-annotation count:
for a sample node, area reflects the number of distinct genes co-annotated with that sample for a given compound,
for a compound node, area reflects the total unique genes co-annotated with that compound across all samples,
for a class node, area reflects the sum of unique genes co-annotated with all compounds and samples within that class.
Color Encoding Rectangle color also encodes the unique gene co-annotation count:
brighter or warmer colors indicate higher gene co-annotation diversity,
cooler colors indicate fewer unique gene co-annotations.
Interactivity
The interactive treemap allows:
clicking on a rectangle to zoom in and focus on a specific class, compound, or sample subset,
hovering to display labels (class, compound, sample) and the associated unique gene count.

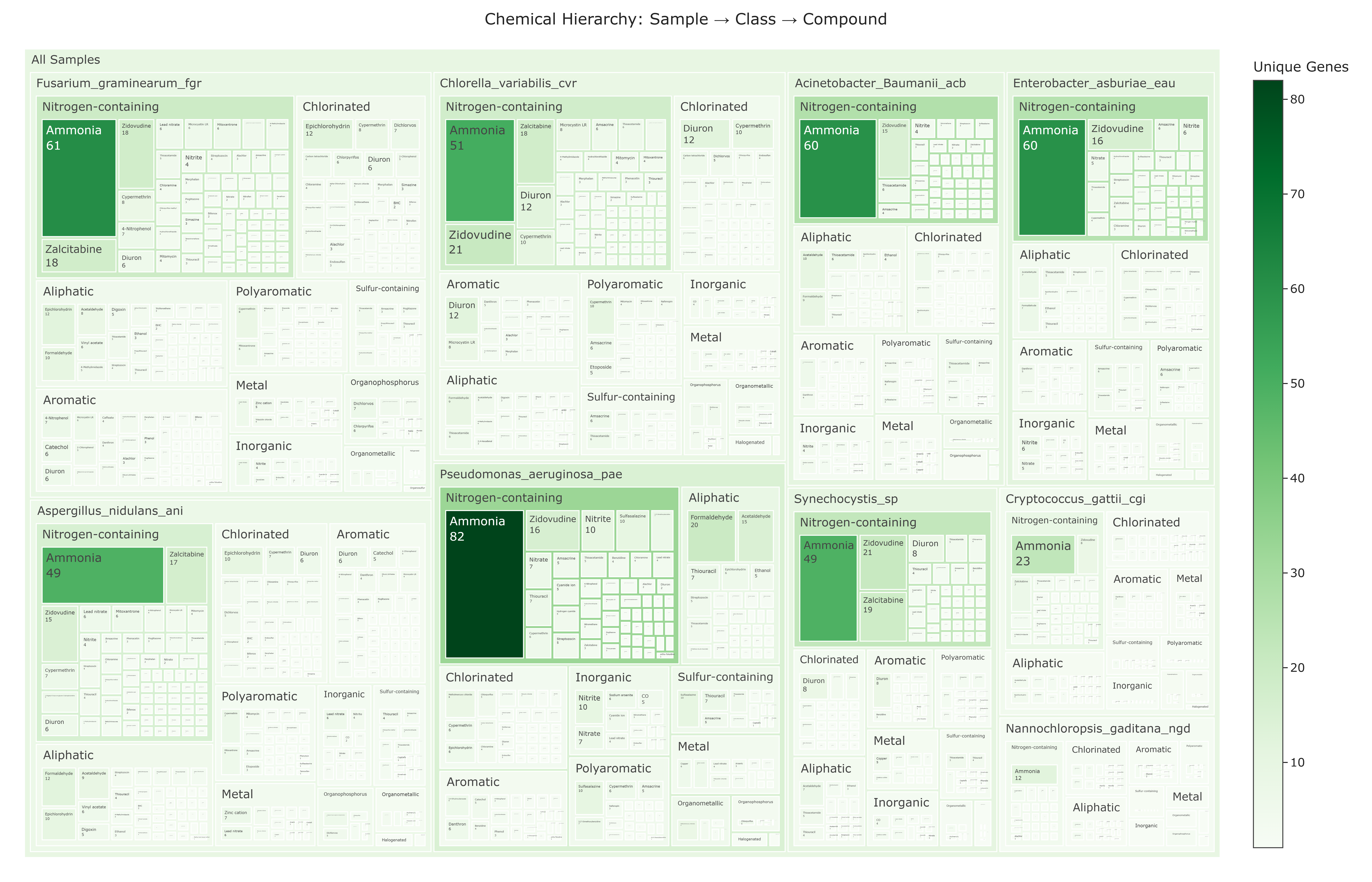

Representative Output¶

The image below illustrates a representative output generated by this use case using the example dataset.

Click on the image to enlarge and explore details.

Interpretation and Key Messages¶

Broadly Co-annotated Chemical Classes The largest and most intensely colored top-level rectangles may identify compound classes that:
are co-annotated with a broad and diverse set of genes in the database,
may represent annotation-rich regions of chemical space worth prioritizing for further investigation.
Highly Co-annotated Compounds within Classes Within a given class, the largest compound rectangles may highlight:
specific compounds co-annotated with particularly high gene diversity,
candidates for focused pathway analysis or experimental investigation.
High-contributing Samples At the lowest level, large sample rectangles may identify:
which samples contribute the greatest number of unique gene co-annotations to a particular compound,
samples with broad annotation coverage for specific compounds or classes.
Comparative Annotation View across the System The treemap can provide a compact, comparative snapshot of:
where gene co-annotations are most densely distributed across the chemical hierarchy,
which parts of the chemical hierarchy are broadly annotated vs. sparsely covered,
and how different samples distribute their gene co-annotations across chemical space.

Reproducibility and Assumptions¶

Input Format
The analysis assumes a semicolon-delimited table containing:
compoundclass, compoundname, sample, and genesymbol.
Value Definition
The fundamental value driving the visualization is the count of unique gene symbols within each (compoundclass, compoundname, sample) group.
Higher-level values are derived by summing these counts across nested levels.
Interpretation Scope
Unique-gene count is used as a measure of gene co-annotation diversity; it does not directly encode gene expression levels, kinetic parameters, or regulatory effects.
The treemap is therefore best interpreted as a structural and comparative annotation map, informing where more detailed functional or experimental analyses may be most impactful.

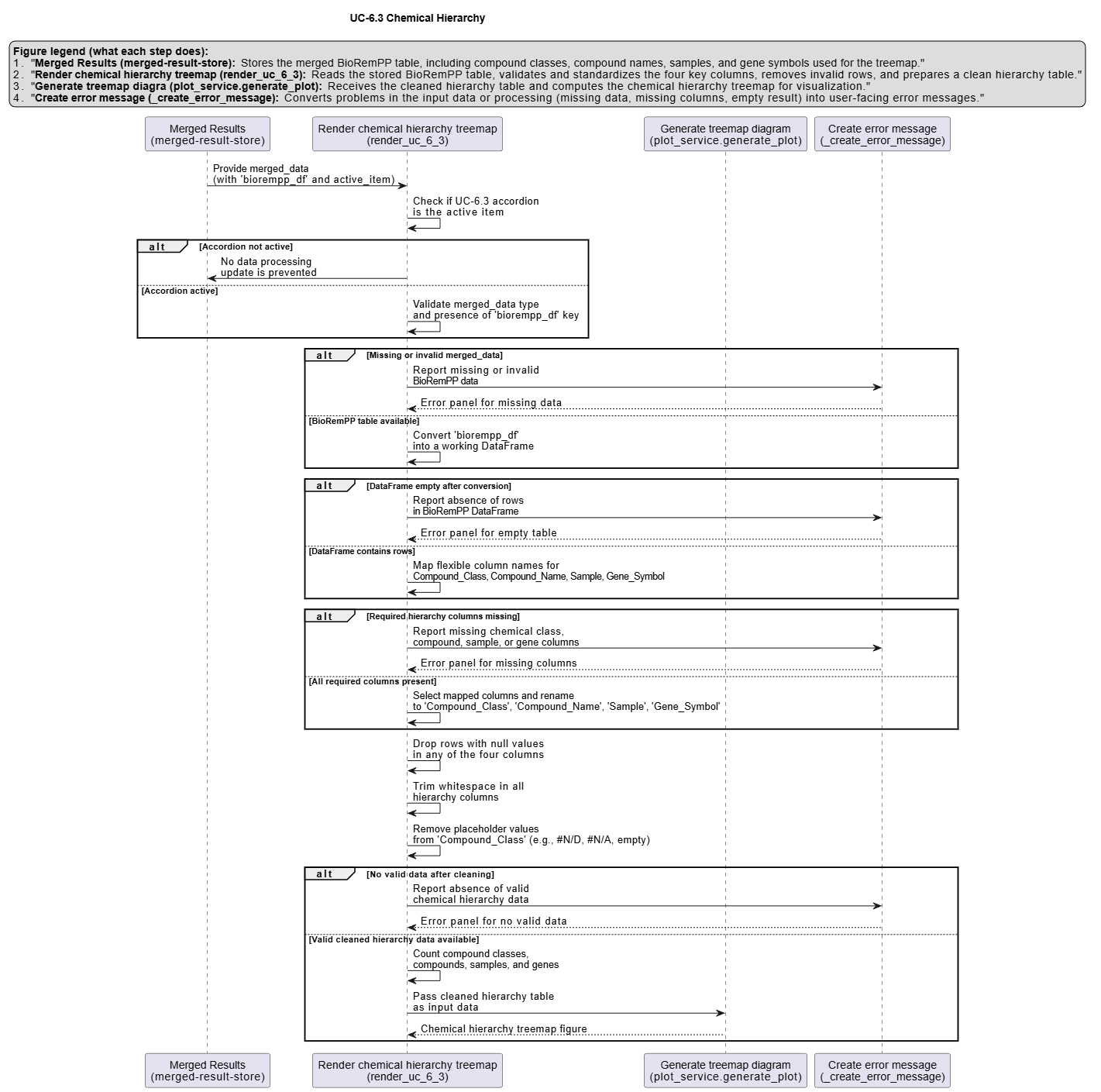

Activity diagram of the use case¶

Click on the image to enlarge and explore details.
