UC-7.7 — Sample Risk Mitigation Depth¶

Module: 7 – Toxicological Risk Assessment and Profiling
Visualization type: Interactive treemap (hierarchical depth of gene–compound interactions per sample)
Primary inputs: BioRemPP_Results.xlsx or BioRemPP_Results.csv (sample–compound–gene interactions) and ToxCSM.xlsx or ToxCSM.csv (predicted toxicity and categories)
Primary outputs: Per-sample "Risk Mitigation Depth Profile" across toxicological categories and compounds

Scientific Question and Rationale¶

Question: Which samples have the highest number of KO annotation co-occurrences linked to different categories of predicted toxicological risk?

This use case focuses on the depth or intensity of KO annotation co-occurrences rather than the variety of compounds. The treemap builds a KO Annotation Depth Profile by quantifying, for each sample and toxicological category, how many gene–compound annotation co-occurrences are recorded for predicted high-risk compounds. Larger areas correspond to more co-occurrences, which may highlight where each sample has concentrated annotation coverage and which compounds are associated with particularly large numbers of KO annotations.

Data and Inputs¶

Primary data sources:
BioRemPP_Results.xlsx or BioRemPP_Results.csv – KO annotation data linking samples, compounds, and genes
ToxCSM.xlsx or ToxCSM.csv – predicted toxicity scores and qualitative labels for compounds
Key columns:
From BioRemPP_Results.xlsx or BioRemPP_Results.csv:
- sample – identifier for each biological sample
- compoundname – name of the chemical compound
- genesymbol – gene symbol or identifier associated with the interaction
From ToxCSM.xlsx or ToxCSM.csv:
- compoundname – chemical compound name (to be matched with BioRemPP)
- endpoint / label_* – endpoint-specific toxicity labels (e.g., "High Toxicity", "High Safety")
- supercategory (derived) – mapped toxicological super-category (e.g., Genomic, Environmental, Organic)
Hierarchy represented in the treemap:
Level 1: Sample
Level 2: Toxicity Category (super-category)
Level 3: Compound Name

The quantitative value is the total count of gene–compound interactions for each (sample, category, compound) path.

Analytical Workflow¶

Data Loading and Integration
The primary results tables BioRemPP_Results.xlsx or BioRemPP_Results.csv and ToxCSM.xlsx or ToxCSM.csv are loaded from their semicolon-delimited formats.
Risk Filtering in ToxCSM
The ToxCSM dataset is reshaped into a long format (one row per compound–endpoint pair) and filtered to retain only entries corresponding to compounds with a non-trivial predicted risk, i.e., compounds that are not labeled as "High Safety". The remaining set defines risk-relevant compounds.
Endpoint-to-Category Mapping
Individual toxicological endpoints are mapped to broader Toxicity Categories (e.g., Genomic, Environmental, Organic) using a predefined lookup table. This mapping assigns each endpoint to its parent super-category.
Data Merging
The risk-filtered ToxCSM data is merged with BioRemPP_Results.xlsx or BioRemPP_Results.csv on compoundname, connecting:
samples,
compounds,
genes, and
their associated toxicological categories.
Aggregation for Depth
The merged dataset is grouped along the full hierarchy:
sample → Toxicity Category → compoundname.
For each unique path, the total number of gene–compound annotation co-occurrences is computed (e.g., using .size() on the rows belonging to that path). This count is used as a measure of KO annotation depth for that path.
Rendering as Treemap
The aggregated data is rendered as an interactive treemap:
top-level rectangles represent Samples,
nested rectangles at the second level represent Toxicity Categories,
third-level rectangles represent individual Compounds,
the area of each rectangle is proportional to the total interaction count for that path.

How to Read the Plot¶

Nested Rectangles (Hierarchy)
The treemap uses nested rectangles to encode the hierarchical structure:
the largest, outer rectangles correspond to Samples,
within each sample, rectangles represent Toxicity Categories,
within each category, smaller rectangles represent individual Compounds.
Area (Values) The area of each rectangle is proportional to the total number of gene–compound annotation co-occurrences associated with that (sample, category, compound) path. Larger areas indicate greater KO annotation depth.
Color Encoding
Color is typically used to distinguish Toxicity Categories at the second level. This makes it easy to visually group compounds and see which categories dominate a sample's depth profile.
Interactivity (Zoom and Tooltips)
The treemap is interactive:
clicking on a rectangle allows the user to zoom in on a specific sample or category,
tooltips reveal details such as sample name, toxicity category, compound name, and total interaction count.

Representative Output¶

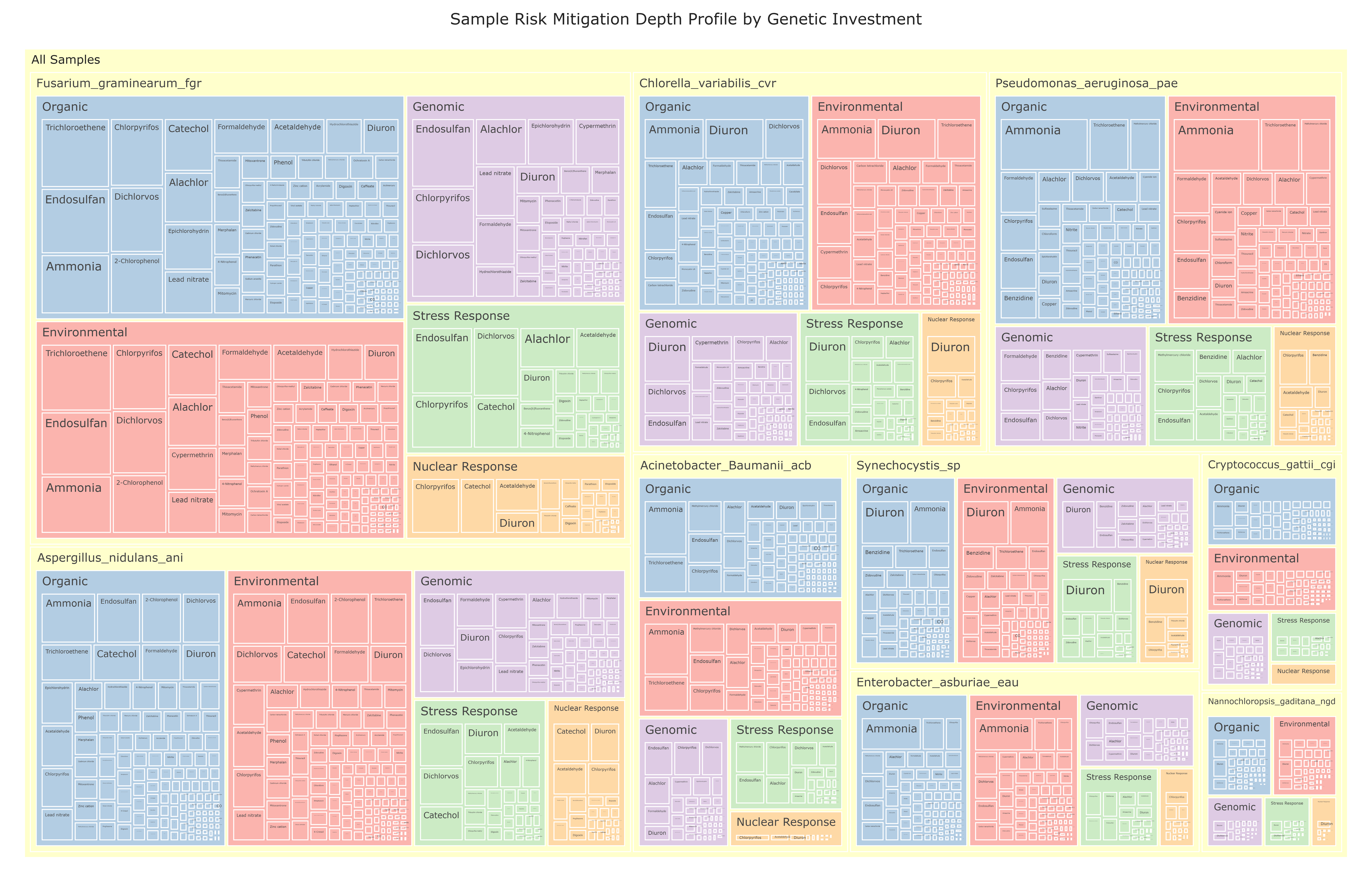

The image below illustrates a representative output generated by this use case using the example dataset.

Click on the image to enlarge and explore details.

Interpretation and Key Messages¶

High KO Annotation Depth Large rectangles (especially at the compound level) may indicate high KO annotation depth for a sample–compound pair within a particular toxicological category. This reflects a large number of KO annotation co-occurrences (experimental validation required to confirm functional response).
Sample Annotation Concentration by Category Examining the second level (Toxicity Category) within a sample may reveal annotation concentration patterns:
a sample with a particularly large Genomic rectangle has many KO annotation co-occurrences with genotoxic compounds,
similarly, dominance of Environmental or Organic categories may reflect concentrated annotation coverage in those risk domains.
Compounds with High Annotation Co-occurrence Compounds that appear as large rectangles at the third level are associated with a high number of KO annotation co-occurrences across genes. These compounds may warrant further investigation, though functional complexity requires experimental validation.
Complementarity with Breadth (UC-7.6) This visualization complements the breadth-oriented perspective in UC-7.6:
UC-7.6 emphasizes how many different high-risk compounds a sample is co-annotated with,
UC-7.7 emphasizes the total annotation co-occurrence count per compound–sample pair. Together, they provide complementary annotation-level views for hypothesis generation and prioritization.

Reproducibility and Assumptions¶

Input Format
The analysis requires:
BioRemPP_Results.xlsx or BioRemPP_Results.csv – semicolon-delimited, containing at least sample, compoundname, and genesymbol, and
ToxCSM.xlsx or ToxCSM.csv – semicolon-delimited, containing compoundname, toxicity scores, labels, and endpoint metadata.
Definition of Risk-Relevant Compounds
Compounds are retained if they are not labeled as "High Safety" in at least one endpoint. This can be tightened (e.g., only "High Toxicity") or relaxed depending on the desired risk threshold.
Depth Metric The value driving the visualization is the total count of annotation co-occurrences (rows) in the merged dataset per (sample, category, compound):
repeated gene–compound annotation associations increase this count,
the metric prioritizes KO annotation depth rather than the number of unique entities.
Name Consistency and Mapping
Reliable merging requires consistent compoundname usage between BioRemPP_Results.xlsx or BioRemPP_Results.csv and ToxCSM.xlsx or ToxCSM.csv. Synonyms and naming variants should be harmonized upstream.
Model and Annotation Context
As with other UC-7 analyses, the concept of risk is based on ToxCSM predictions, and annotation depth is based on the coverage and granularity of BioRemPP annotations. The treemap should be interpreted as a model- and annotation-informed view of KO annotation depth, rather than a direct measurement of in situ metabolic flux, functional capacity, or expression levels.

Activity diagram of the use case¶

Click on the image to enlarge and explore details.
